Humminbird

Humminbird Helix12 Chirp Mega Si+ Gps G4n

Humminbird Helix12 Chirp Mega Si+ Gps G4n

Regular price $2,699.99 USD
Regular price Sale price $2,699.99 USD
Sale Sold out

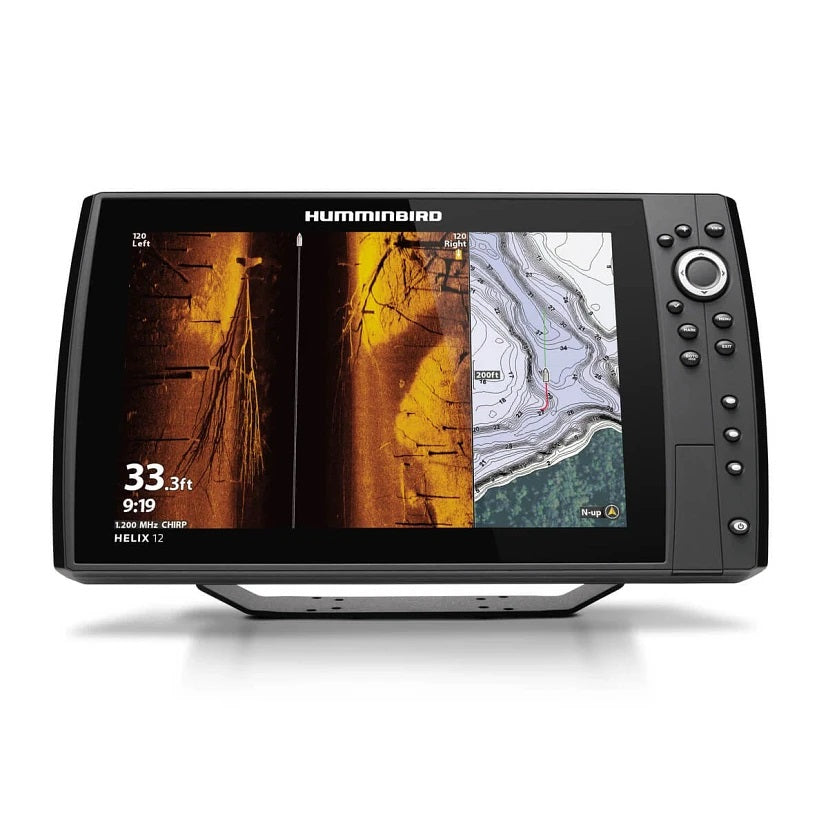

Humminbird HELIX 12 CHIRP MSI+ GPS G4N with Transom Mount Transducer

Model: 411970-1
  • The HELIX 12 CHIRP MSI+ GPS G4N features a 12.1"" display, MEGA Side Imaging+, MEGA Down Imaging+, Dual Spectrum CHIRP Sonar and internal GPS with Humminbird Basemap. As with all HELIX G4N models, this HELIX 12 includes standard features such as AutoChart Live, Wi-Fi and NMEA 2000®, in addition to Bluetooth® and Ethernet networking for compatibility with the One-Boat Network™ family of products from Humminbird, Minn Kota and Cannon.
  • MEGA Side Imaging+: See the world below like never before with a crystal-clear Side Imaging viewing out to 200 feet on either side of your boat. You'll unlock more fish and structure with 20% more detail and 60% more range capability than MEGA Side Imaging sonar.
  • MEGA Down Imaging+: Get unprecedented underwater clarity with Down Imaging coverage down to 200 feet below your boat. You'll unlock more fish and structure with 20% more detail and 60% more depth capability than MEGA Down Imaging sonar.
  • Dual Spectrum CHIRP sonar: Before you cast, know what's down there thanks to highly-detailed fish arches and a clear view of fish-holding structure and the bottom. Powered by our proprietary, Low-Q CHIRP transducer, Dual Spectrum offers two ways to search; Wide Mode for maximum coverage and Narrow Mode for focusing on the slightest detail.
  • Internal GPS and Humminbird Basemap: Our enhanced basemap provides you with a clear view of underwater terrain and surrounding points of interest so you can fish and navigate with total confidence. Identify buoys, day markers, hazards, marinas, contours, depth markers and much, much more. Includes charts of more than 10,000 lakes, plus coastal coverage for the continental U.S.
  • Premium Chart Compatible: Humminbird provides the most complete offering of premium chart options to anglers everywhere. Get a complete view of the world below with optional charts from Humminbird's LakeMaster® and CoastMaster™ products, as well as your choice of compatible Navionics® charts.
  • AutoChart Live: Create real-time maps of your fishing spots, with access to patented Humminbird® LakeMaster® features. Map depth contours, bottom hardness and vegetation as you drive your boat. Comes standard with eight (8) hours of built-in recording time and is compatible with AutoChart Zero Line SD cards for virtually-endless AutoChart Live mapping capacity.
  • One-Boat Network Compatible: Many Humminbird models seamlessly integrate and communicate with Minn Kota motors and Cannon Optimum downriggers to unlock more features and capabilities for anglers everywhere. Make the more of your time on the water with the exclusive boat control and fish-catching features of the One-Boat Network.
  • Ethernet Networking: High-speed Ethernet allows you to build a powerful, professional-grade fishing system. Easily connect multiple fish finders, or upgrade to add-on technologies like Minn Kota i-Pilot Link and Humminbird CHIRP Radar.
  • Bluetooth: Take control right from the screen of your Humminbird with wireless communication to compatible Talon and Raptor shallow water anchors, as well as Cannon Optimum downriggers. Additional features include wireless software updates from the Humminbird FishSmart App and display of smart phone notifications on your Humminbird.
  • NMEA 2000 networking built-in: Connect an accessory NMEA 2000 network to your control head for even more information; from boat performance to weather and water conditions, make sense of it all with NMEA 2000 networking.
  • 2-Year Limited Warranty
Specifications
Display Size - Diagonal 12.1 in
Display Pixel Matrix 1280H x 800V
Memory Card Slot Dual SD
Sonar-Standard Dual Spectrum CHIRP, MEGA Side Imaging+, MEGA Down Imaging+
Sonar-Coverage 20°, 42°, 60°, (2) 86° & (2) 55° @ -10dB
Live Sonar-Coverage 20 degrees x 120 degrees
CHIRP - Frequencies Supported Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz), Full Mode (150-220 kHz)
Sonar-Frequencies Supported 50/83/200/455/800 kHz & 1.2 MHz
Depth-Sonar 3,500 ft (optional 50 kHz), 1,200 ft (standard transducer)
CHIRP - Imaging Frequencies Supported MEGA DI+ (1100-1200 kHz), 800 kHz SI+ (780-840 kHz), 455 kHz SI+ (405-505 kHz), 800 kHz DI+ (800-860 kHz), 455 kHz DI+ (435-535 kHz), MEGA SI+ (1050-1175 kHz)
Depth-Down Imaging 200 ft (MEGA), 400 ft (455 kHz), 125 ft (800 kHz)
Range-Side Imaging (Side-To-Side) 800 ft (455 kHz), 250 ft (800 kHz), 400 ft (MEGA)
Interface Keypad Control
Power Draw 3.2 Amps
Power Input 10.8-20 VDC
Power Output Peak-to-Peak 8000 Watts
Power Output RMS 1000 Watts
Mount-Standard Gimbal
Mount-Standard Size 14.86 in W x 8.83 in H x 4.25 in D
GPS Chartplotting Yes
GPS Receiver Internal
GPS Trackplotting Included
Waypoints, Routes, Tracks/Points 2,750, 47, 50/20,000
360 Imaging Compatibility yes
MEGA Live Compatibility Yes
Humminbird Basemap included
Compatible Charts Lakemaster, CoastMaster, Navionics Gold/HotMaps/Platinum/Platinum+
Minn Kota i-Pilot Link Compatibility Yes
Minn Kota Talon Shallow Water Anchor Compatibility Yes
Radar Compatibility Yes
5-Port Ethernet Switch Compatibility Yes
AIS Compatibility Optional
Autopilot Compatibility Yes
Heading Sensor GPS Compatibility Yes
NMEA2000 Yes
Target Separation 2.5 in
Interference Rejection 6 Modes
Noise Rejection 10 Steps
View Preset Keys Yes
Display Colors Grayscale 16-Bit
Display Type Color TFT
Temperature Built In
HDMI Compatible No

What's in the Box:
  • Helix 12 MSI+ Control head
  • Screen cover
  • Transom-mount transducer - XM 9 HW MSI T
  • Power cable
  • Gimbal mounting bracket
  • Mounting hardware.
